Mini Observation Elevator

LD5000 Series

Rising through the clouds, fulfilling the promise of the sky, guarding every journey with unwavering protection.

LD5000-001

Ceiling: Deep Blue metallic powder coated aluminum frame + Champagne Gold brilliant silver sparkle antibacterial art panel + perimeter light strips + center spotlights
Front Wall: Deep Blue metallic powder coated aluminum frame + clear glass + Deep Blue brilliant silver sparkle antibacterial art lintel panel
Car Door: Deep Blue metallic powder coated aluminum frame + clear glass + illuminated LOGO welcome sill
Left Wall: Deep Blue metallic powder coated aluminum frame + clear glass + integrated side-middle COP with RGB knob + Champagne Gold brilliant silver sparkle antibacterial art panel
Rear Wall: Deep Blue metallic powder coated aluminum frame + clear glass
Right Wall: Deep Blue metallic powder coated aluminum frame + clear glass + Champagne Gold brilliant silver sparkle antibacterial art panel at side-middle
Floor: Pandora (Slate)
Skirting: Deep Blue metallic powder coated aluminum + RGB light strip

Scan QR code for panoramic view

Scan QR code for panoramic view

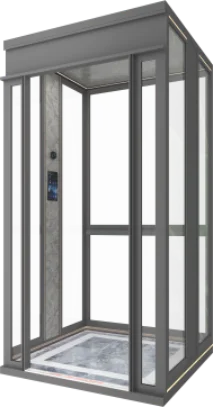

LD5000-002

Ceiling: Dusk Gray metallic powder coated aluminum frame + soft-touch wood (Gray Birdseye) + perimeter light strips + center spotlights
Front Wall: Dusk Gray metallic powder coated aluminum frame + clear glass + Dusk Gray brilliant silver sparkle antibacterial art lintel panel
Car Door: Dusk Gray metallic powder coated aluminum frame + clear glass + illuminated LOGO welcome sill
Left Wall: Dusk Gray metallic powder coated aluminum frame + clear glass + split-type side-middle COP with RGB knob + soft-touch wood (Gray Birdseye)
Rear Wall: Dusk Gray metallic powder coated aluminum frame + Dusk Gray aluminum handrail + clear glass
Right Wall: Dusk Gray metallic powder coated aluminum frame + clear glass + soft-touch wood (Gray Birdseye) at side-middle
Floor: Inlaid slate pattern (Premium Snow White + Hermès Gray)
Skirting: Dusk Gray metallic powder coated aluminum + RGB light strip

Scan QR code for panoramic view

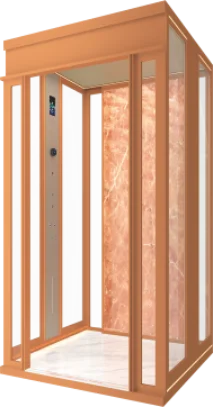

LD5000-003

Ceiling: Danxia Orange metallic powder coated aluminum frame + Rose Gold brilliant silver sparkle antibacterial art panel + perimeter light strips + center spotlights
Front Wall: Danxia Orange metallic powder coated aluminum frame + clear glass + Danxia Orange brilliant silver sparkle antibacterial art lintel panel
Car Door: Danxia Orange metallic powder coated aluminum frame + clear glass + illuminated LOGO welcome sill
Left Wall: Danxia Orange metallic powder coated aluminum frame + clear glass + integrated side-middle COP with RGB knob + Danxia Orange brilliant silver sparkle antibacterial art panel covered with Rose Gold leather
Rear Wall: Danxia Orange metallic powder coated aluminum frame + clear glass on both sides + Art Glass (LDSW-06) in the middle
Right Wall: Danxia Orange metallic powder coated aluminum frame + clear glass + Danxia Orange brilliant silver sparkle antibacterial art panel at side-middle covered with Rose Gold leather
Floor: Premium Snow White (Slate)
Skirting: Danxia Orange metallic powder coated aluminum + RGB light strip

Scan QR code for panoramic view

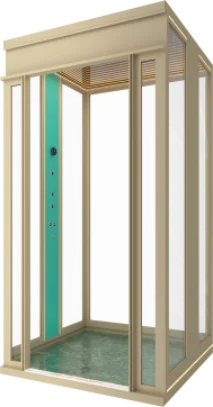

LD5000-004

Ceiling: Champagne Gold metallic powder coated frame + infinite mirror ceiling + perimeter light strips
Front Wall: Champagne Gold metallic powder coated aluminum frame + clear glass + Champagne Gold brilliant silver sparkle antibacterial art lintel panel
Car Door: Champagne Gold metallic powder coated aluminum frame + clear glass + illuminated LOGO welcome sill
Left Wall: Champagne Gold metallic powder coated aluminum frame + clear glass + split-type side-middle COP with RGB knob + Champagne Gold brilliant silver sparkle antibacterial art panel covered with Spruce Green leather
Rear Wall: Champagne Gold metallic powder coated aluminum frame + clear glass
Right Wall: Champagne Gold metallic powder coated aluminum frame + clear glass + Champagne Gold brilliant silver sparkle antibacterial art panel at side-middle covered with Spruce Green leather
Floor: Amazon Green (Slate)
Skirting: Champagne Gold metallic powder coated aluminum + RGB light strip

Scan QR code for panoramic view

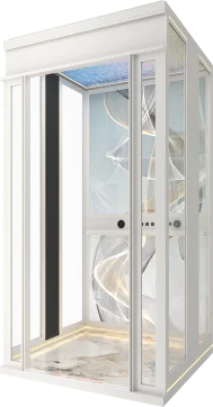

LD5000-005

Ceiling: Feather Sand White metallic powder coated aluminum frame + colorful wave ceiling + perimeter light strips
Front Wall: Feather Sand White metallic powder coated aluminum frame + clear glass + Feather Sand White brilliant silver sparkle antibacterial art lintel panel
Car Door: Feather Sand White metallic powder coated aluminum frame + clear glass + illuminated LOGO welcome sill
Left Wall: Feather Sand White metallic powder coated aluminum frame + clear glass + Feather Sand White brilliant silver sparkle antibacterial art panel at side-middle covered with Feather Sand Black leather
Rear Wall: Feather Sand White metallic powder coated aluminum frame + Feather Sand White aluminum handrail + horizontal COP + Art Glass (LDC-01)
Right Wall: Feather Sand White metallic powder coated aluminum frame + clear glass + Feather Sand White brilliant silver sparkle antibacterial art panel at side-middle covered with Feather Sand Black leather
Floor: Pandora (Slate)
Skirting: Feather Sand White metallic powder coated aluminum + RGB light strip

Comprehensive guarantee
Security protection starts from now on

Towing machine

Ultra-quiet host, environmentally friendly and energy-saving. It runs smoothly and silently without disturbing users' sleep and rest. Adopting energy-efficient permanent magnet synchronous gearless host, the energy efficiency is improved by 40%.

Dual controller system

Transplant the high-speed elevator solution architecture into villa elevators, adopting dual motherboard control and bidirectional self-test design. When the main controller fails, the auxiliary controller detects and protects it.

One-key call for help system

All models come standard with a one-touch call function. In an emergency, you can press the one-touch dial button on the control panel, and the system will automatically call multiple pre-set emergency contacts to obtain external assistance promptly.

Power outage emergency leveling

Emergency leveling doors are equipped with power failure. When there is a sudden power failure during the elevator operation, the emergency power supply will drive the elevator to the nearest door and open the door, effectively preventing the elevator from being trapped due to power failure.

SOS fault self-rescue function

When the elevator fails, the SOS button is actively triggered, and the elevator runs to the nearest door and opens the door, effectively avoiding the elevator trapping event caused by the failure.

Absolute encoder

The absolute position system is adopted to identify the car position throughout the process. The door is good, the roof is not hit, and the leveling accuracy reaches 1mm.

Electronic safety gear

Electronic safety gear provides more accurate capture speed and maximizes the car.

National standard design and manufacturing

Product design and manufacturing are in accordance with national standards, and the products are certified by authoritative agencies, ensuring higher safety; the shaft frame is made of aerospace-grade aluminum from the 6000 series and is certified by authoritative agencies.

Roller guide boots

Rolling friction method, operates more smoothly, produces less noise, has lower wear, and a longer service life, requires no maintenance during use.

No gutter at the pit

The ground pit adopts a no-slot design, preventing pinching and tripping, reducing the probability of foreign objects causing blockages and malfunctions, making it easier to clean without foreign object accumulation, lowering maintenance costs, and improving the smoothness of passage.

Intelligent technology

IoT intelligent system (standard)

Through the car walkie-talkie, with the help of the Internet of Things module, the car is directly connected to the remote mobile phone. Use the one-key dialing function in the car to connect with family members or professional rescuers to achieve relief.

Remote data monitoring (standard)

Relying on Internet of Things technology, remote data monitoring is realized, elevator parameters and operating status are monitored in real time, faults are warned in advance, and the elevator is always kept in good operating condition.

Non-contact calling system (optional)

The non-contact button can respond without contact within 5mm and realize the elevator calling function.

Intelligent face recognition system (optional)

Elevator floor registration system based on face recognition method. After the user swipes the face to register, the data is synchronized to the face recognition module of the elevator terminal, and the authorized users are restricted to take the elevator.

Voice control system (optional)

Optional voice control system, no need to touch the elevator button, you can directly have a voice dialogue with the elevator, zero contact in the elevator process, to achieve a smart elevator experience.

Mobile APP remote calling system (standard)

Passengers can remotely call elevators through the mobile phone terminal call elevator APP software, realize the network cloud elevator call function, avoid touching the button, and control the operating status of the elevator at the same time.

Creative space
Layout is free as you like

A professional team formulates and installs solutions to meet users’ personalized customization needs and create high-end and luxurious home life.

Surround staircase

Indoor floor opening type

Hollow Hall Type

External shaft type

Grade 6 Aerospace-grade aluminum

9 color combinations, enjoy the design aesthetics, other color requirements can be customized.

Feather Black

Feather White

Coral Red

Cloud Gray

Deep Blue

Spruce Green

Dawn Orange

Champagne

Rose Gold

Advantages of aluminum alloy frames

A variety of glass and frame colors are available for free selection, and can be matched with hall doors of the same color to match the home space.
The integrated aluminum alloy glass frame is made of selected industrial aluminum alloy and transparent glass, with a compact structure and space saving.
The frame has a built-in bolt design, adopts a hidden cross-section interface treatment, and comes with a wire trough, which is beautiful and fashionable.
